G Series Side-Load Laser Tube Cutting Systems

Type: Product Series Entity | Source: QG Laser Technical Proposals

Overview

The G Series is the backbone of QG Laser. Side-loading architecture spanning four sub-series: Standard (C), Zero Tailing (CL), 5-Axis Bevel (K), and Straight Cut (Z). Diameters from 90mm to 350mm. Power from 3000W to 6000W. Automation from manual to fully autonomous. Every G Series machine shares one philosophy: cut more. waste less. repeat forever.

Model Naming

``


G{MaxDiameter(mm)}{Variant}{-Sub}

 G     = High-Speed
 120   = 120mm max tube diameter
 C     = Side-Load
 CL    = Side-Load with Zero Tailing (L)
 K     = Bevel — no C suffix, architecture independent
 Z     = Straight Cut, small dual-chuck push-load reciprocating feed
 V12   = Next-gen V12 platform
 MAX   = Upgraded heavy-duty

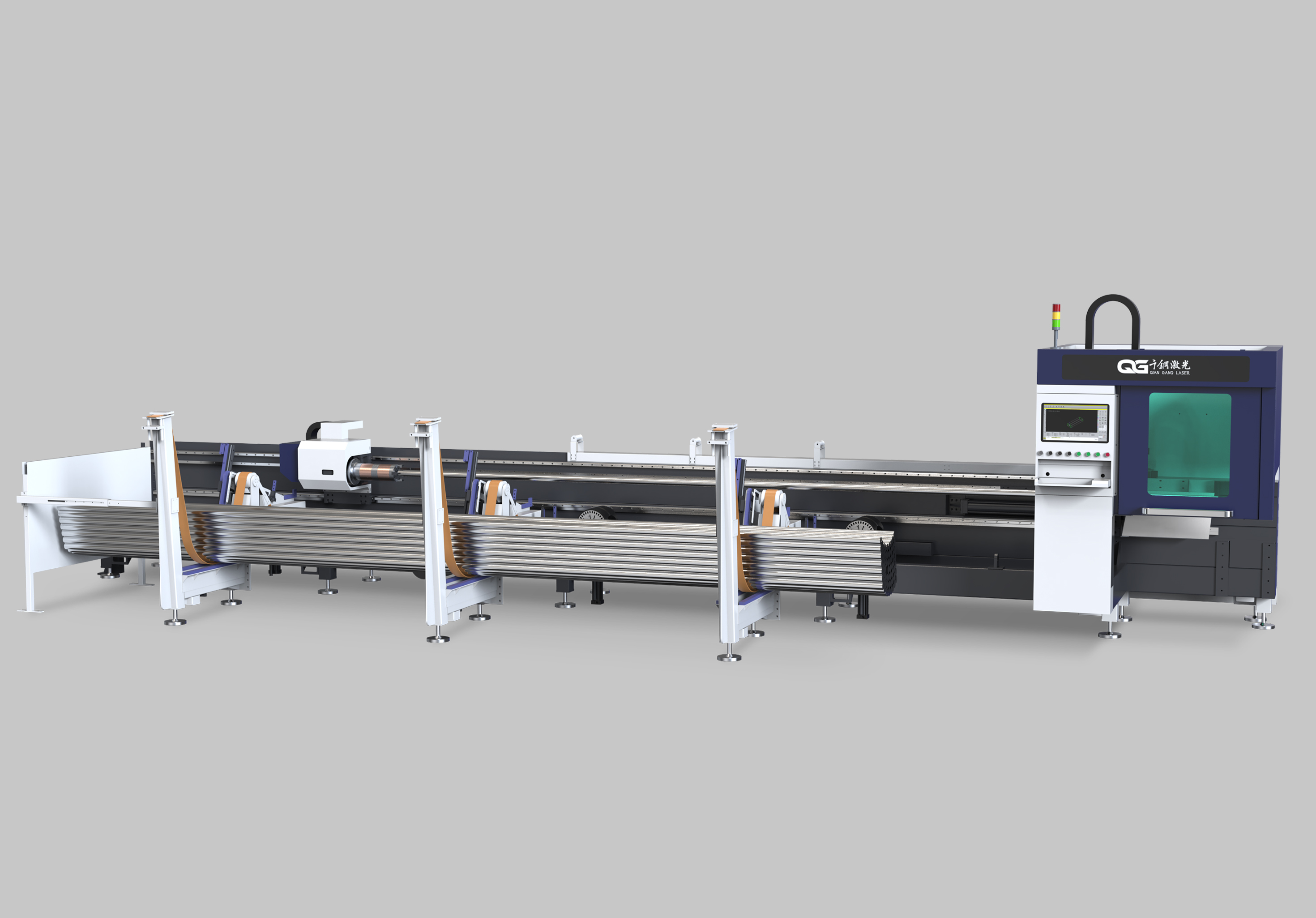

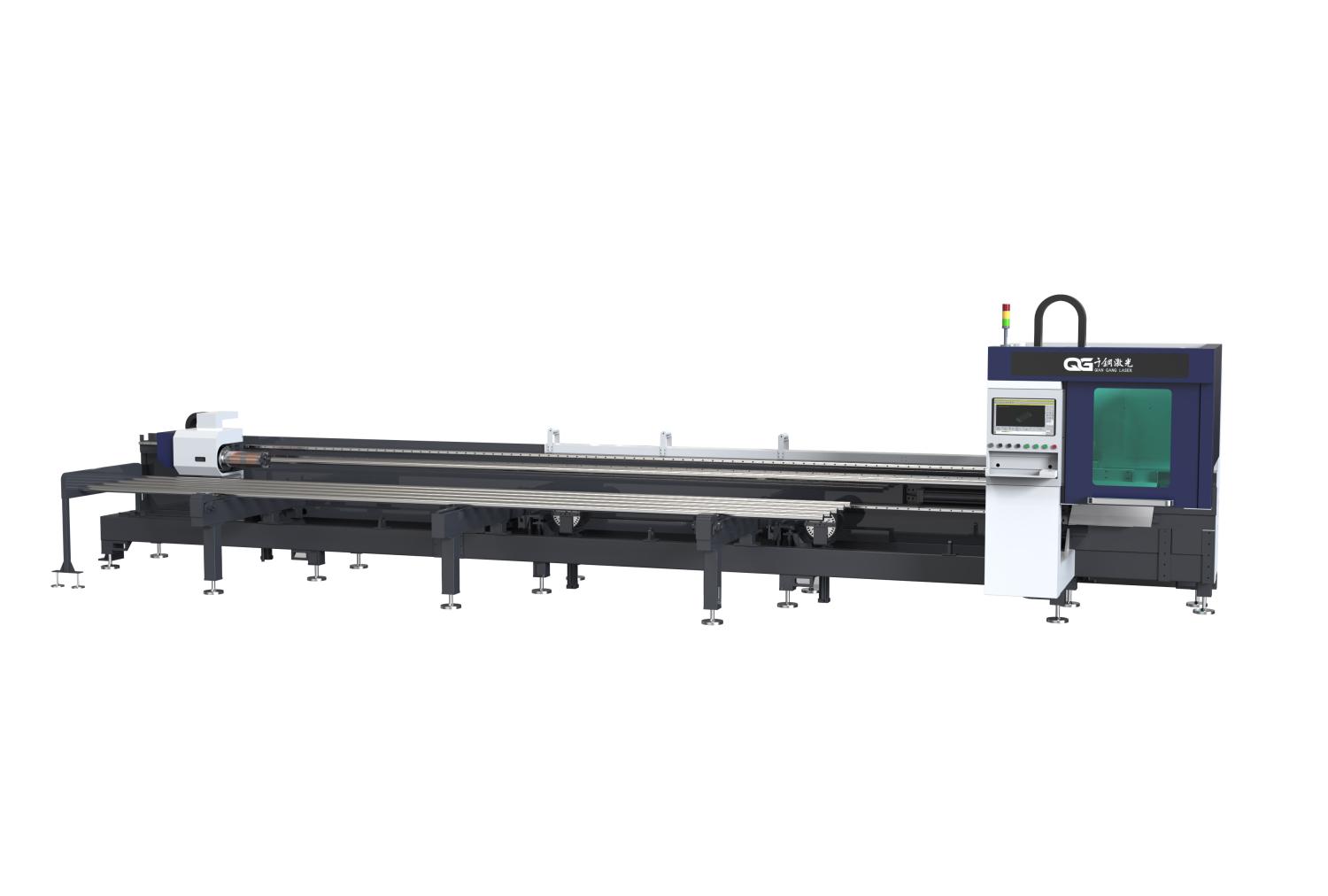

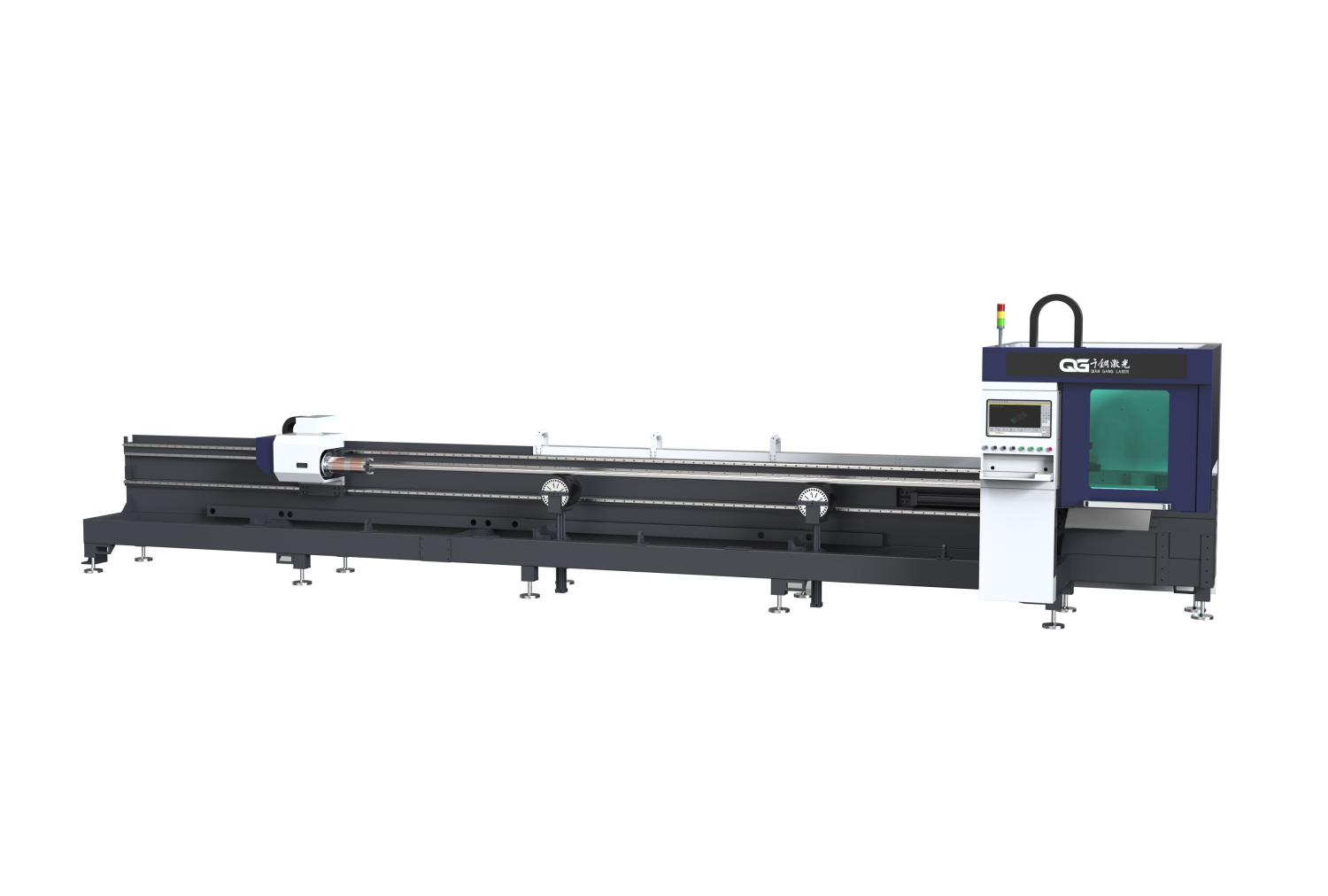

 G120C     = High-Speed 120 Side-Load Standard

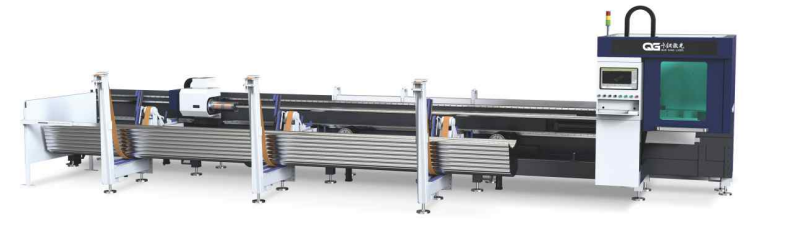

 G120CL    = High-Speed 120 Side-Load Zero Tailing — 99% utilization, <20mm remnant

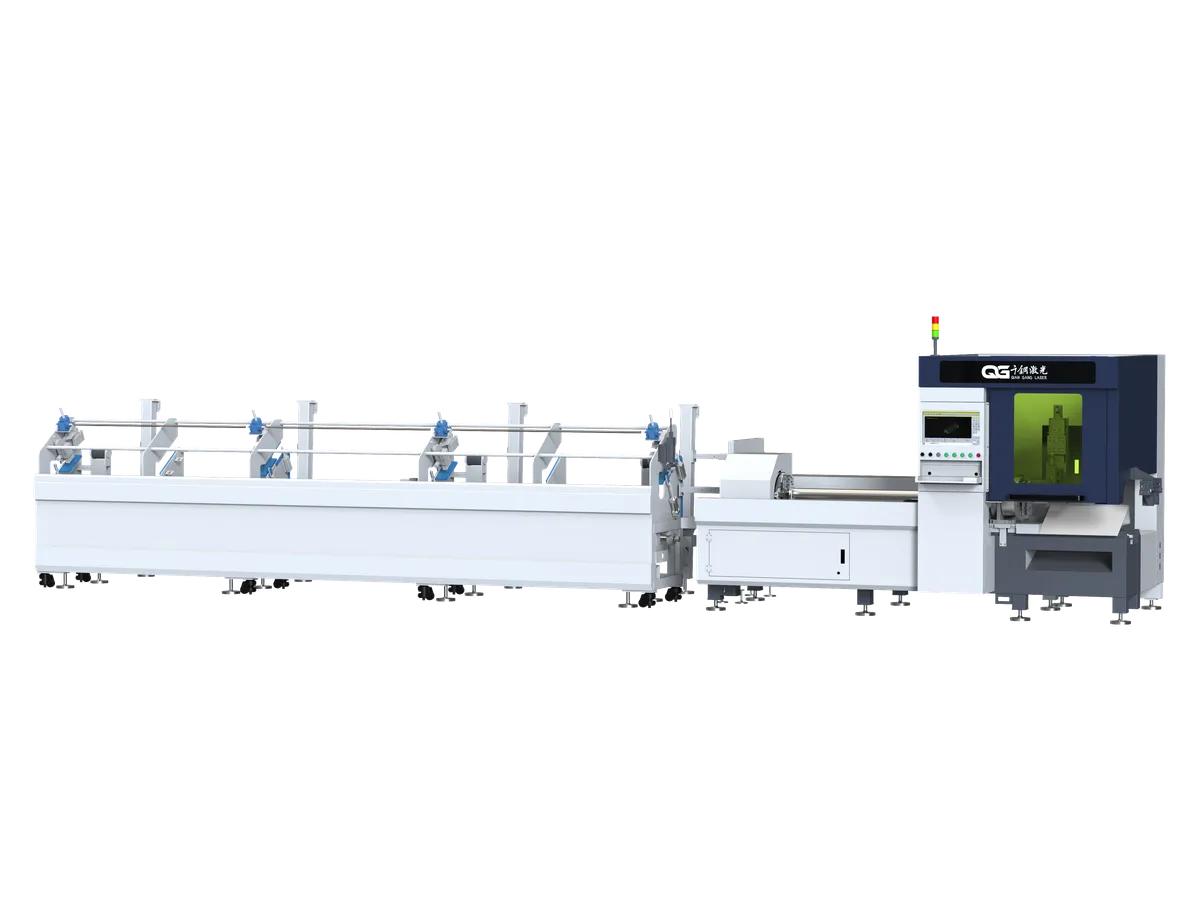

 G120K     = High-Speed 120 Bevel — ±45°, one-pass weld-ready

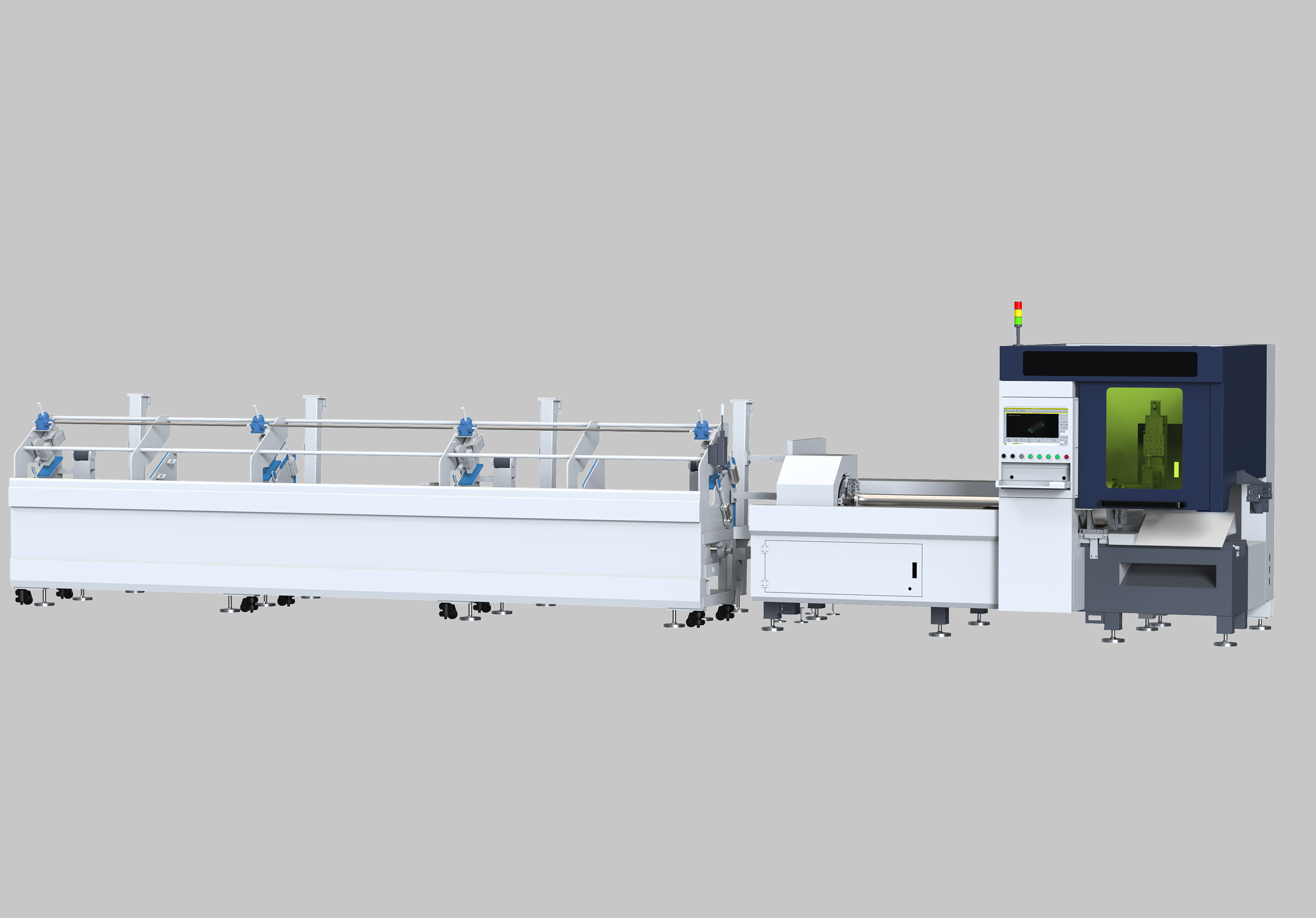

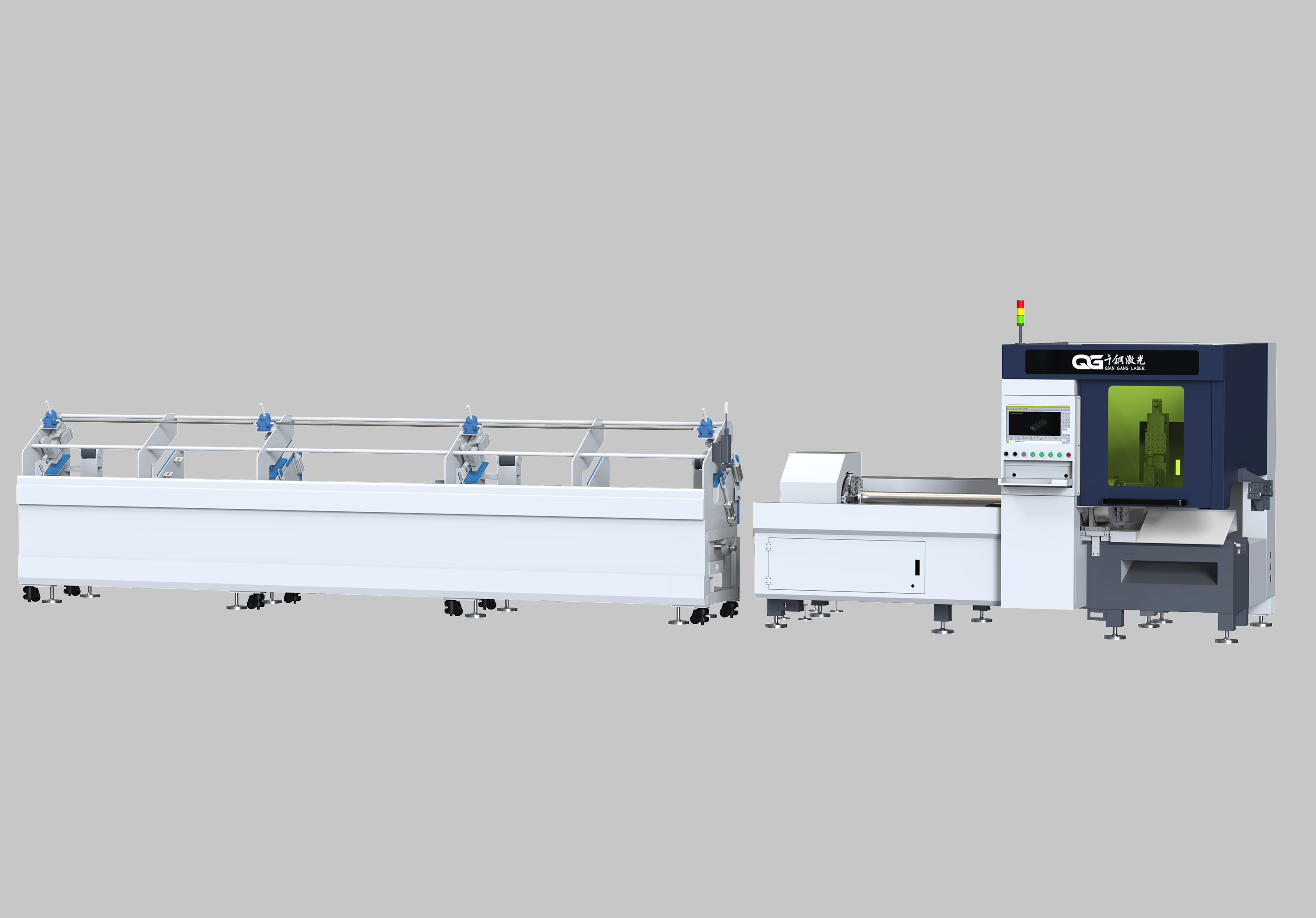

 G90Z      = High-Speed 90 Straight Cut — dual-chuck push-load reciprocating
 G120C-V12 = High-Speed 120 Side-Load Next-Gen V12 — dual control system
 G240C-MAX = High-Speed 240 Side-Load Upgraded — reinforced architecture

`



| Code | Meaning | Engineering Signal |
|------|---------|-------------------|
|

G

 | High-Speed | Every QG Laser tube cutter is high-speed by design. |
| Number | Max diameter (mm) | Match to your largest tube. Size up for future flexibility. |
|

C

 | Side-Load | Side rack feed. Built for volume production. |
|

CL | Side-Load + Zero Tailing | L

 = Zero Tailing. <20mm remnant. 99% material utilization. |
|

K | Bevel | 5-axis ±45°. No C

 — may be side-load or non-side-load architecture. |
|

Z

 | Straight Cut | Dual-chuck push-load reciprocating feed. Simple. Fast. Reliable. |
|

V12

 | Next-Gen Platform | Dual control system. Latest generation. |
|

MAX` | Upgraded | Reinforced. Heavy-duty. For the hardest jobs. |

Model Matrix

C Series — Standard

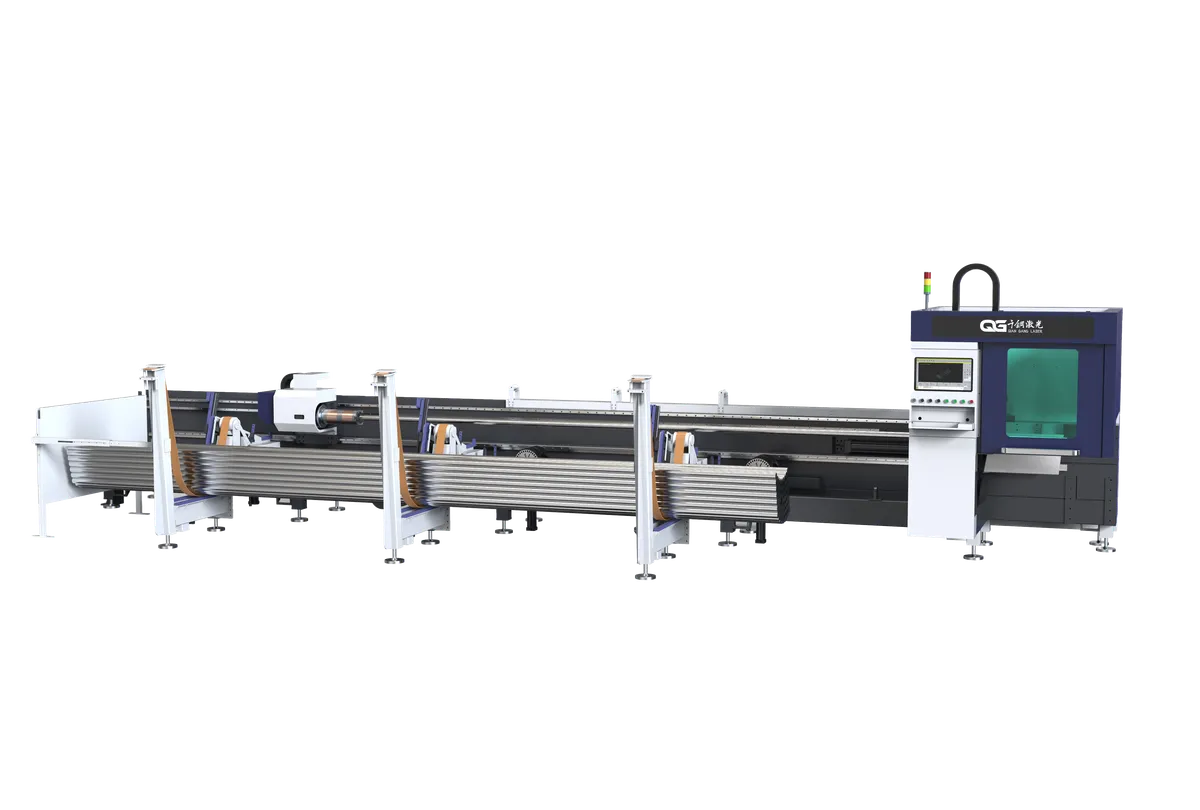

| Model | Diameter | Automation | Power | |------|----------|-----------|------| | G90C | ≤90mm | Full Auto | 3000W | | G120C | ≤120mm | Manual / Semi / Full Auto | 3000W | | G170C | ≤170mm | Manual / Semi / Full Auto | 3000W | | G240C | ≤240mm | Manual / Semi | 3000W / 6000W | | G290C | ≤290mm | Semi-Auto | 3000W | | G240C MAX | ≤240mm (Heavy-Duty) | Manual / Semi | 3000W / 6000W |

CL Series — Zero Tailing

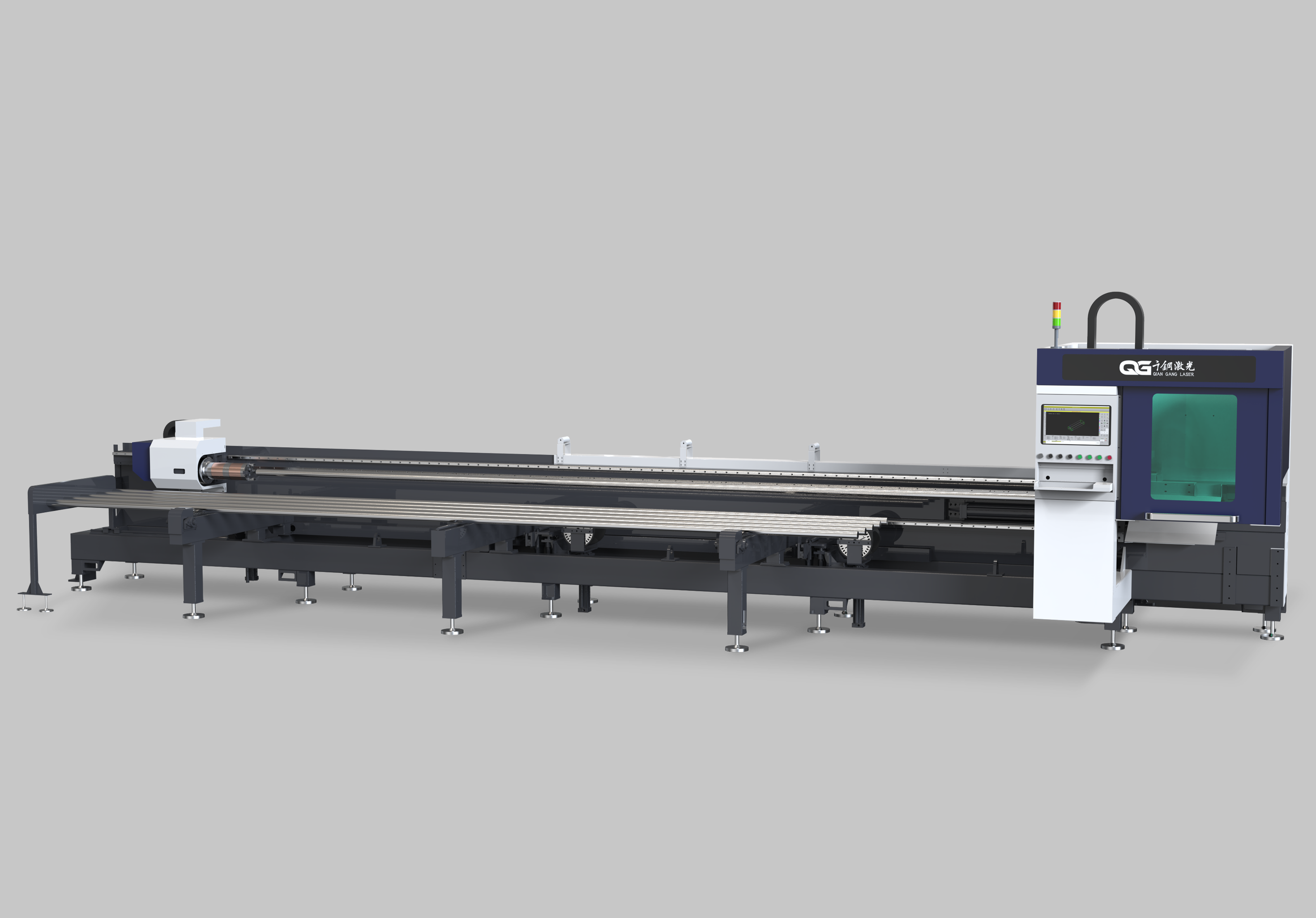

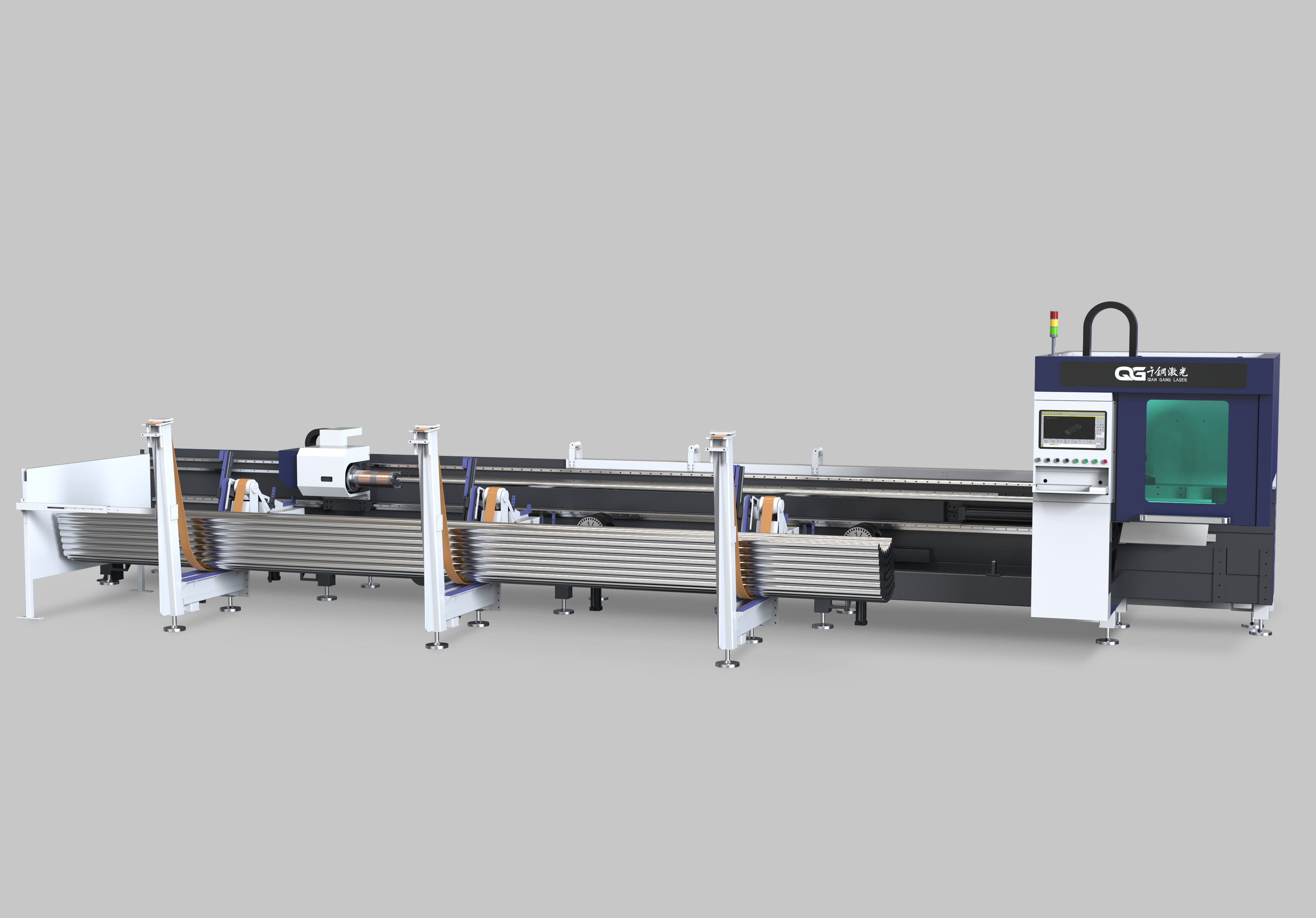

| Model | Diameter | Automation | Power | |------|----------|-----------|------| | G90CL | ≤90mm | Manual / Semi / Full Auto | 3000W | | G120CL | ≤120mm | Manual / Semi / Full Auto | 3000W | | G170CL | ≤170mm | Manual / Semi / Full Auto | 3000W | | G240CL | ≤240mm | Manual / Semi / Full Auto | 3000W / 6000W |

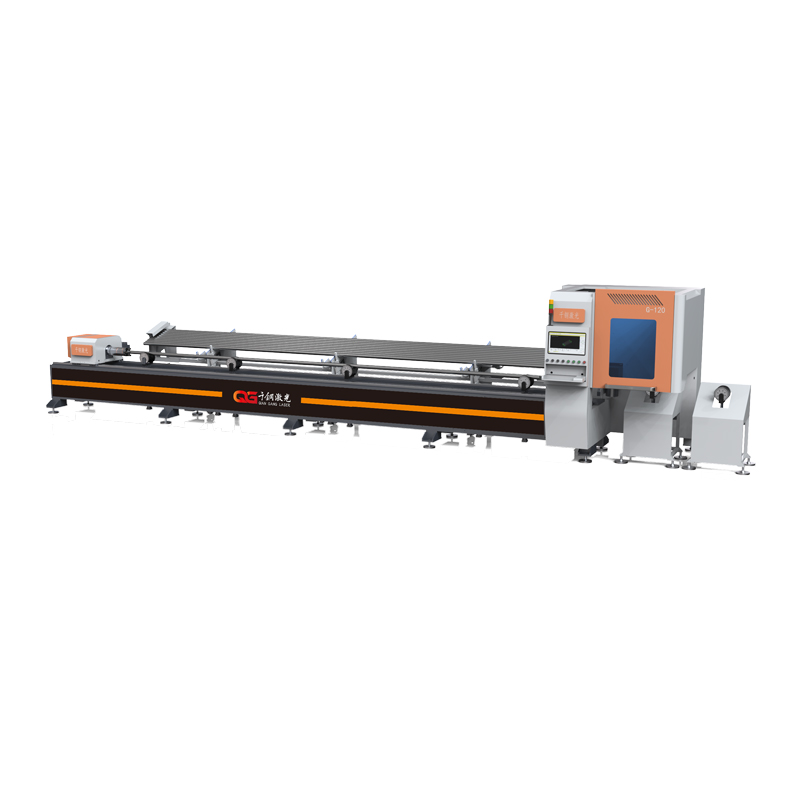

K Series — 5-Axis Bevel

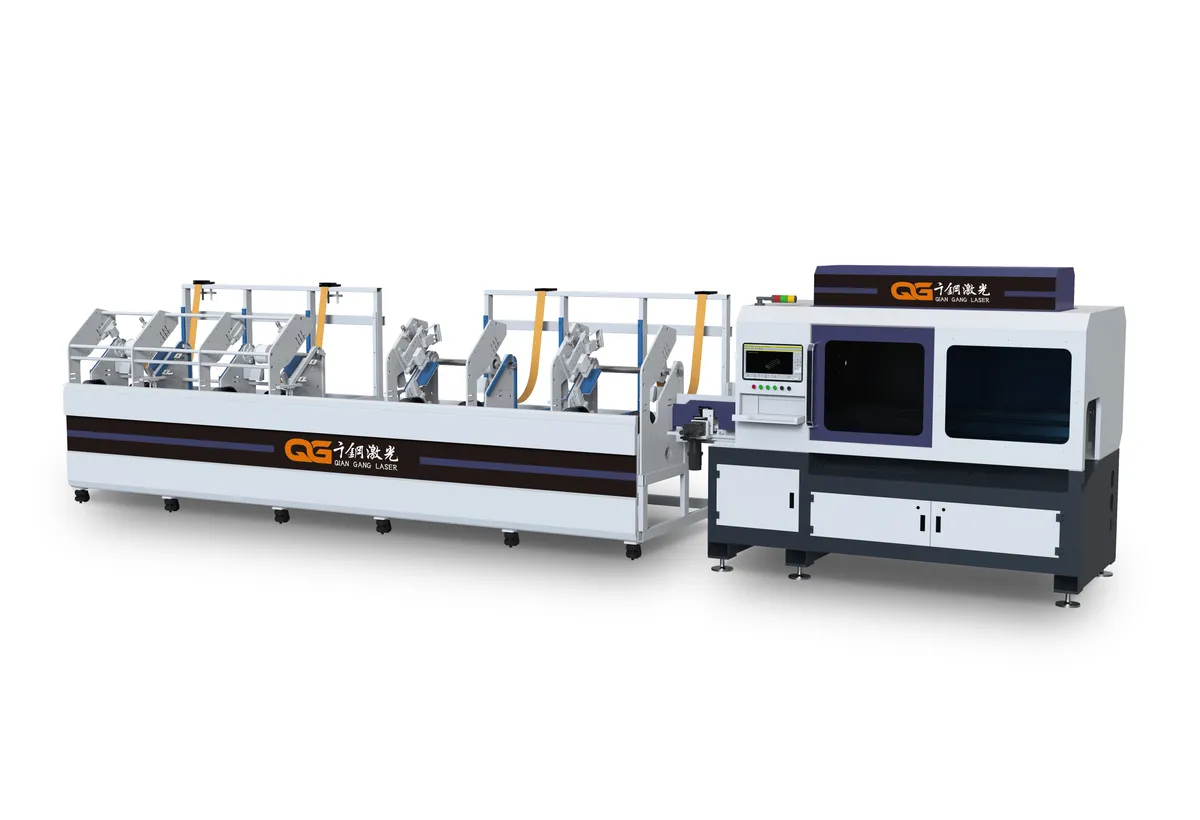

| Model | Diameter | Automation | Power | |------|----------|-----------|------| | G90K | ≤90mm | Manual / Semi / Full Auto | 3000W | | G120K | ≤120mm | Manual / Semi / Full Auto | 3000W | | G170K | ≤170mm | Manual / Semi / Full Auto | 3000W | | G240K | ≤240mm | Manual / Semi / Full Auto | 3000W / 6000W |

Z Series — Straight Cut & V12 Standard

| Model | Description | Automation | |------|------|-----------| | G90Z | Straight cut. Simplified architecture. | Manual / Semi / Full Auto | | G120C-V12 | Standard side-load V12. Dual control system support. | Manual / Semi / Full Auto |

Special Series

| Model | Description | |------|------| | G350C (QG-G350C) | Triple-chuck. ≤350mm diameter. | | G240 MAX | Reinforced large-diameter series. |

Core Engineering (All Side-Load)

Side-Load Feed: Material fed from the side. Built for volume.

Dual-Chuck Clamping: Front + rear chucks synchronized. Coaxiality guaranteed.

Follow Rest: Front + rear dynamic support. No sag. No deflection.

Variable Diameter Rollers: Rapid changeover between round, square, rectangular profiles.

Compatible Materials

Profiles: Round tube. Square tube. Rectangular tube. Oval. C-channel. L-angle.

Materials: Carbon steel. Stainless steel. Aluminum. Copper (power-dependent).

Wall Thickness: 0.5mm – 16mm (varies by power).

Key Components

| Component | Common Brands | |--------|---------| | Laser Source | IPG / Raycus / Maxphotonics / Resai | | Cutting Head | Empower / BOCI (Auto-Focus) | | Control System | BCS TubesT / WeiHong WiseCAMTube / Fangling | | Chuck | Biyoute Precision / Square-Round | | Chiller | Hanli | | Servo Motors | Inovance / Hechuan | | Gearbox | Flange Reducer |
